Class B Airspace and Operating Requirements
Class B is the most protective airspace class built around any specific airport ? reserved for the nation's busiest, most complex hubs. Its distinctive shape means the authorization question isn't simply "am I near a Class B airport," but "is my actual operating altitude inside the Class B volume at this specific location." This lesson works through exactly how that shape is built and when 14 CFR 107.41 authorization is genuinely required.
The "inverted wedding cake" shape
Class B airspace surrounds the busiest, most complex airports in the country, and it is built as a series of stacked, progressively wider rings ? commonly described as an inverted wedding cake. The innermost core, directly around the primary airport, extends from the surface up to a common ceiling (typically around 10,000 feet MSL, though the exact figure is set individually for each Class B area). Moving outward, each successive ring has a progressively higher floor altitude, while all the rings generally share that same overall ceiling ? visually resembling an upside-down tiered cake when viewed in cross-section.
The critical nuance: floor altitude determines whether you're actually "in" Class B
This is the single most important ? and most commonly misunderstood ? point about Class B: airspace classification is a three-dimensional volume, not a flat shape projected onto the ground. A location can sit laterally underneath an outer Class B ring whose floor is, say, 4,000 feet MSL, while a Part 107 flight at 200 feet AGL there is nowhere near that floor ? meaning the flight is not actually operating inside Class B airspace at all, and no 107.41 authorization is required for that specific ring, at that specific altitude. Only the innermost core, which typically extends all the way to the surface, reliably requires authorization for a standard low-altitude sUAS flight regardless of exact altitude.
The only way to know for certain is to check the actual floor altitude of whichever specific ring covers a given location, since floors vary considerably ring to ring and airport to airport ? never assume based on general proximity to a big-city airport alone.
Authorization requirement under 14 CFR 107.41
Whenever a Part 107 flight will actually operate inside the Class B volume ? at or above the applicable ring's floor, within its lateral boundary, and at or below its ceiling ? prior ATC authorization is required before that flight, obtained through LAANC or FAA DroneZone (Lessons K and L). Class B has some of the most complex, high-density traffic in the entire NAS, which is exactly why authorization is required for even brief entries.
Real-world scenario: a rooftop inspection near a major hub airport
A pilot is hired to inspect a rooftop HVAC system on a building 8 miles from a major international airport's Class B core. Checking the sectional chart, the pilot finds this location falls under an outer Class B ring with a floor of 3,000 feet MSL. Since the inspection flight will stay around 150 feet AGL ? nowhere near 3,000 feet MSL at that location's ground elevation ? the flight does not actually enter Class B airspace, and no 107.41 authorization is needed for this specific job. A different job two miles closer to the airport, however, falls under the innermost core with a surface floor, meaning authorization would be required even for the same 150-foot flight.

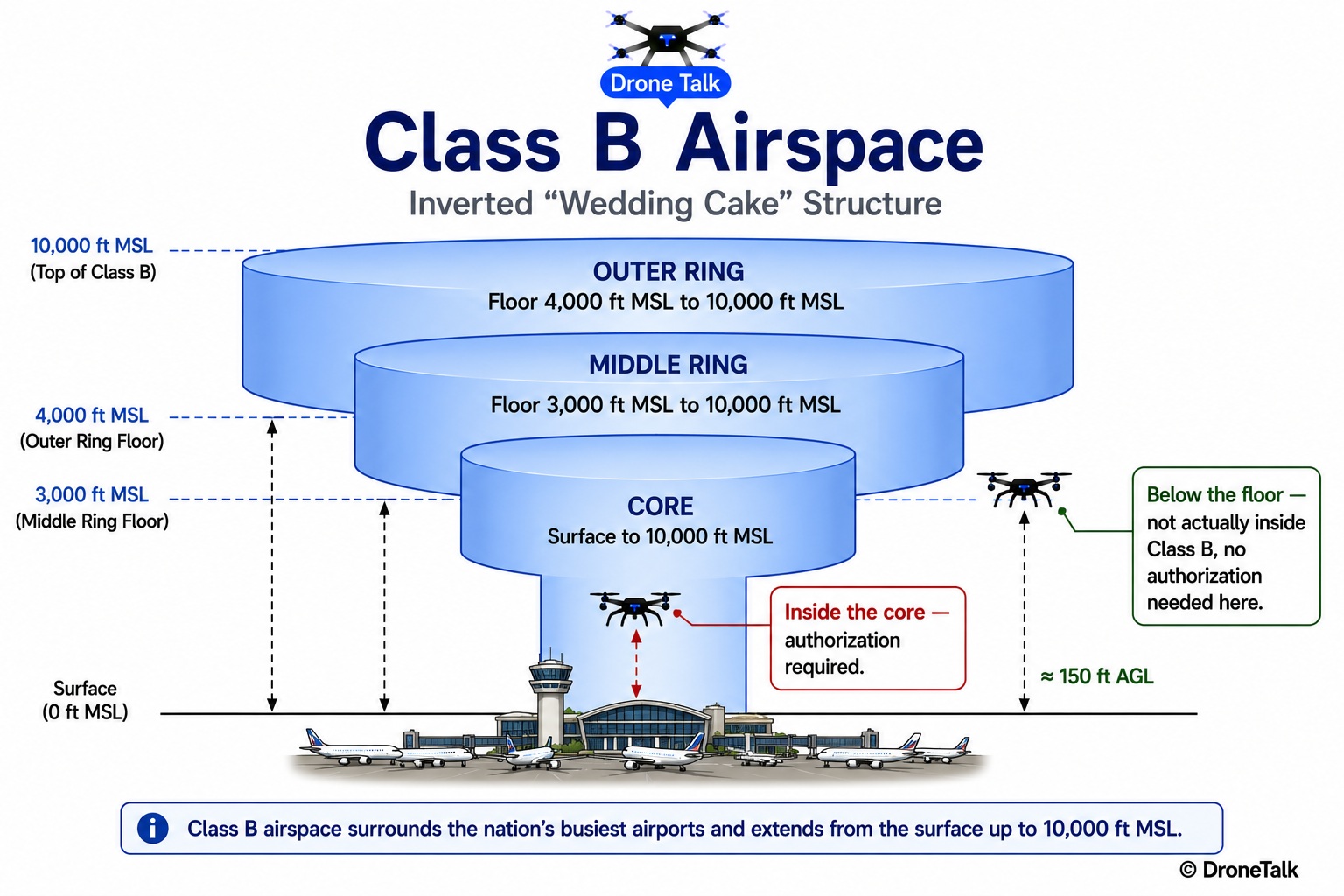

Class B's inverted-wedding-cake shape: authorization depends on actual altitude relative to each ring's floor, not just lateral proximity.
View Larger| Ring | Typical floor | Typical ceiling | Authorization needed if flying there? |
|---|---|---|---|
| Innermost core | Surface | ~10,000 ft MSL (varies) | Yes, virtually always |
| Middle ring(s) | Varies, commonly 1,500-4,000 ft MSL | Same overall ceiling | Only if operating altitude reaches the floor |
| Outer ring | Varies, often highest of all rings | Same overall ceiling | Rarely at standard sUAS altitudes |
| Mistake | Why it happens | Correct understanding | Regulation / source |
|---|---|---|---|
| "Flying low near a big-city airport always avoids Class B." | Assuming Class B only exists at high altitude | The innermost core of Class B extends to the surface ? flying low near the primary airport does not avoid it. | 14 CFR 107.41 |
| "If I'm laterally under any Class B ring, I automatically need authorization." | Treating Class B as a flat 2D shape rather than a 3D volume | Authorization is only required if the actual operating altitude reaches that specific ring's floor. | 14 CFR 107.41 |
| "Every large airport has Class B airspace." | Overgeneralizing "big airport = Class B" | Class B is reserved specifically for the nation's busiest, most complex airports ? many large airports are Class C or D instead. | Airspace designation |
Does Class B airspace always extend all the way to the ground?
Only its innermost core typically does. The outer rings have progressively higher floor altitudes, meaning the airspace directly beneath them at low altitude is not actually Class B.
How do I know the exact floor altitude for a specific location under Class B?
Check the sectional chart for that location, which labels the floor and ceiling of each ring ? covered in full in Module 4's chart-reading lessons.
What color represents Class B airspace on a sectional chart?
Solid dark blue lines, distinguishing it from the solid magenta used for Class C and the dashed blue used for Class D ? covered in detail in Module 4.
